DPT130A鋁塑泡罩藥品包裝機是以PVC和PTP為主要的包裝材料，適用各種不同規格的素片、糖衣片、膠囊、膠丸及異形片粒狀藥品。

　　該機是膽式內加熱鋁塑泡罩包裝機，由于在加熱輥表面采用先進的涂氟技術，使PVC受熱均勻，泡罩成型挺實。停機、開機不存在丟泡現象，避免包裝材料的浪費。吸泡、充填、網紋熱封、打印批號、板塊沖裁皆可連續作業，無邊沖裁可節省包裝材料4%-6%。安裝調試維修方便、結構合理、緊湊、體積小、重量輕、價格低、是高新技術的結晶。

　　主要技術參數：

　　1.包裝材料：PVC130×0.25（mm）PTP130×0.02（mm）

　　2.最大成型深度：15mm

　　3.沖裁次數：25-30次/分

　　4.包裝效率：4-8萬粒/小時

　　5.耗水量：2.91L/min

　　6.電源總功率：3.0KW

　　7.電壓：380V/50HZ 22V/50HZ

　　8.重量：300Kg

　　9.外形尺寸（長×寬×高）：1600×800×1240（mm）

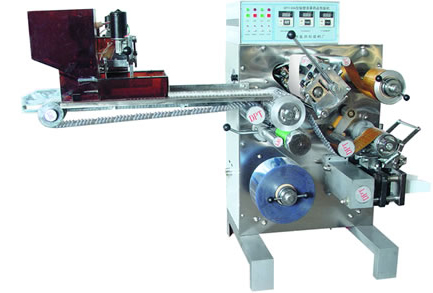

Type DPT130A Aluminum-plastic Blister Packing Machine for Medicine

　　Type DPT130A aluminum-plastic blister packing machine for medicine uses PVC and PTP as main wrappers, which is applied to different specifications of medicines, such as tablets, sugar-coat pills, capsules, CAP, and abnormal tablets and granules.

　　It is the gallbladder-type inner-heating aluminum-plastic blister packing machine. Because it adopted the advanced fluorin painting technology on the surface of heating rollers, so PVC can get even heat, and firm molding blister packing. There is no phenomenon of losing bubbles when stops and starts packing. Therefore it can avoid waste of wrappers. Following working procedures can be performed continuously, including absorbing bubbles, filling, wove heating-seal, printing batch numbers and plank cutting. The plank cutting without edges can save 4%-6% of wrappers. Convenient installation and adjustment, reasonable and compacted structure, small volume, light weight and low price, all these are the result of high and new technology.

　　Specifications:

　　1. Wrapper: PVC130×0.25（mm）PTP130×0.02（mm）

　　2. Max forming depth: 15mm

　　3. Cutting frequency: 25-30times/Min

　　4. Packaging efficiency: 40000-80000 granules/hour

　　5. Water consumption: 2.91L/min

　　6. Total power supply: 3.0KW

　　7. Voltage: 380V/50Hz 22V/50Hz

　　8. Weight: 300Kg

　　9. Dimension (Length × Width × Height): 1600×800×1240（mm）
